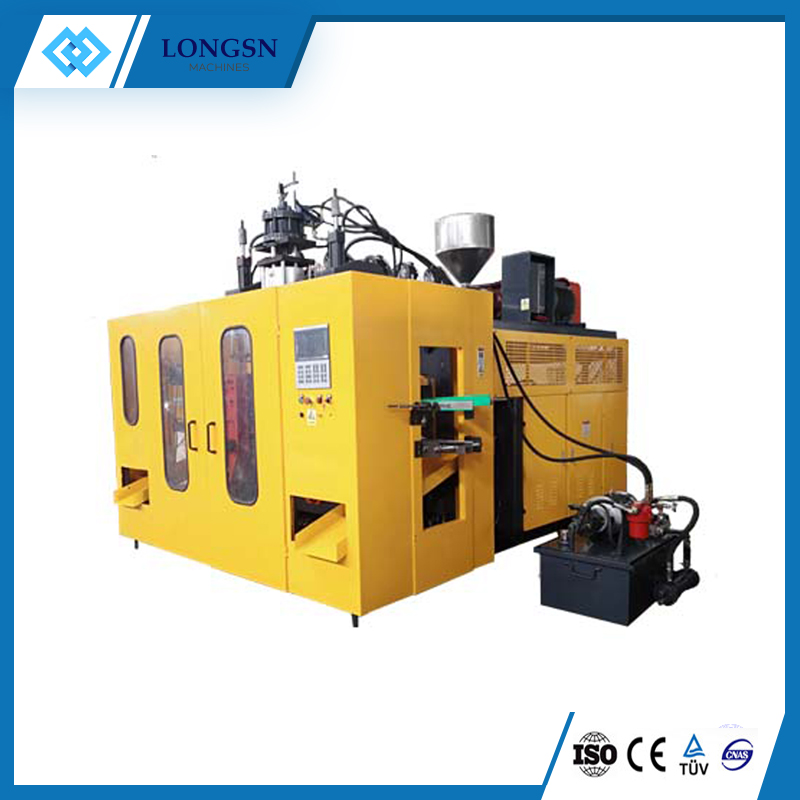

Double station 5 liter plastic jerry can blowing moulding machines price small jar pe hdpe 5liter Extrusion Blow Molding Machine
|
Parameters
|
Units
|
LSN65S
|
LSN70D
|
|
Material
|
|
PE,PP,PV,PVC,PA
|
PE,PP,PV,PVC,PA
|
|
Number of die head
|
set
|
1,2,3,4
|
1,2,3,4
|
|
Max Container capacity
|
|
5L
|
5L
|
|
Screw diameter
|
mm
|
65
|
70
|
|
Screw L/D ratio
|
-
|
24
|
24
|
|
(50HZ)Screw rpm(50hz)
|
r/min
|
10-70
|
10-70
|
|
(PE)Extrusion capacity per hour
|
kg/h
|
60
|
70
|
|
Number of heaters
|
-
|
3
|
3
|
|
Opening stoke
|
mm
|
420
|
420
|
|
Platen size
|
mm
|
320*410
|
320*410
|
|
Clamping force
|
KN
|
68
|
68
|
|
Dry cycle time
|
s
|
5
|
7
|
|
Air pressure
|
Mpa
|
0.8
|
0.8
|
|
Compressed air comsumption
|
m3/min
|
0.4
|
0.4
|
|
Machine dimension(L*W*H)
|
mm
|
3390*1750*2400
|
3800*2140*2400
|
|
Machine net weight
|
T
|
5
|
6
|
|
Extruder heating power
|
kw
|
13.8
|
14.2
|
|
Hydraulic motor
|
kw
|
7.5
|
7.5
|
|
Total power
|
kw
|
45.5
|
49.4
|
